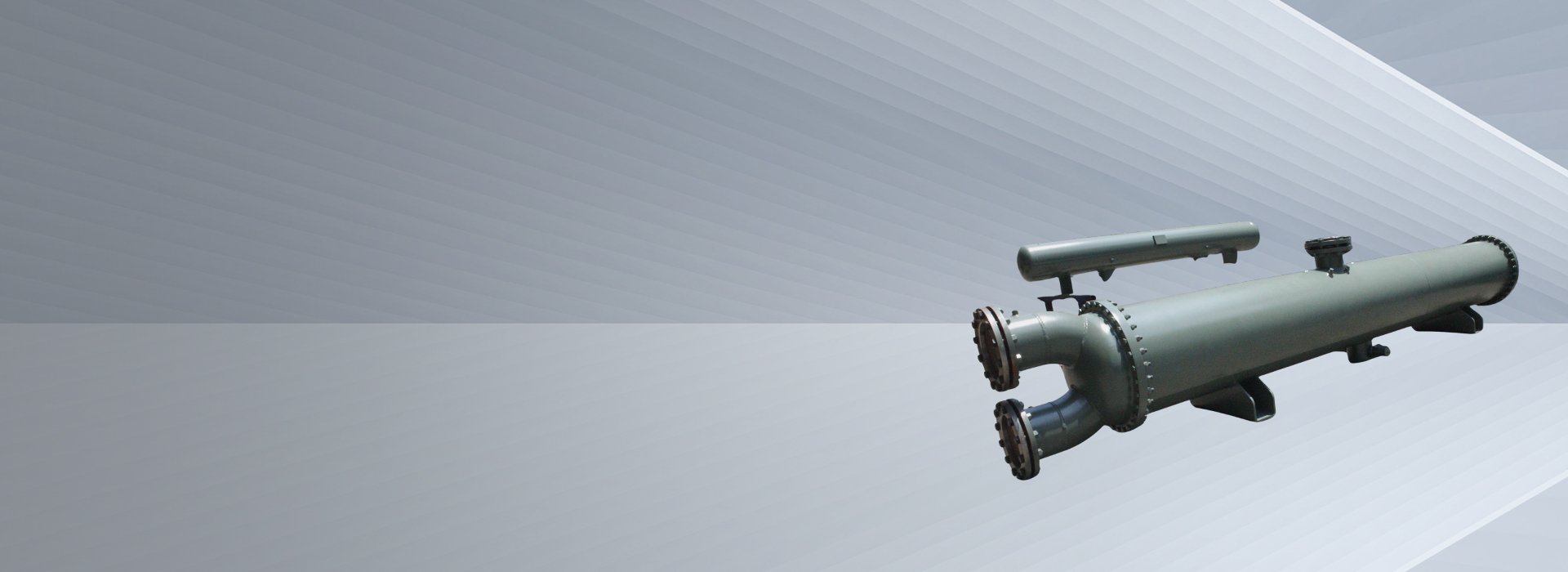

You Trusted Tube Bundle Heat Exchanger Manufacturer in China
Tube bundle heat exchangers are widely used in industrial heat transfer applications. They feature a compact design, high heat transfer efficiency, and adaptability to various operating conditions.
The tube bundles can be made of stainless steel, titanium, or copper tubes, and support straight tube, U-tube, and multi-channel configurations.
UAR can provide customized solutions based on installation space, media characteristics, and performance requirements, and offers technical support and quotation services.
Tube Bundle Heat Exchangers by Structure
Tube bundle heat exchangers offer a variety of layout options, each with its own advantages.

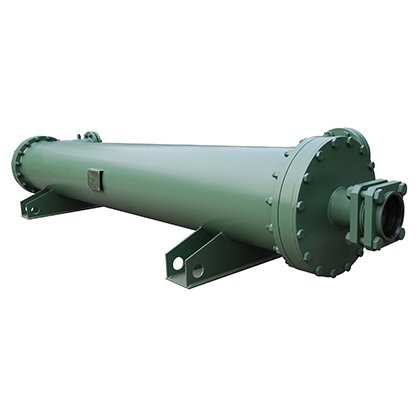

U-tube Bundle Heat Exchanger

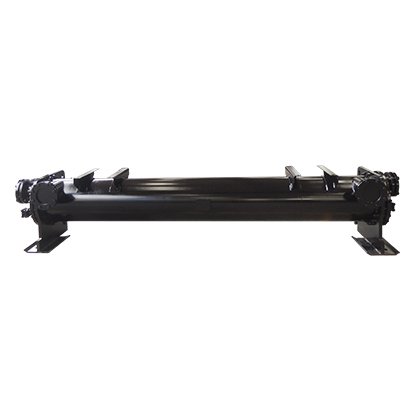

Straight Tube Fixed Tube Sheet Heat Exchanger

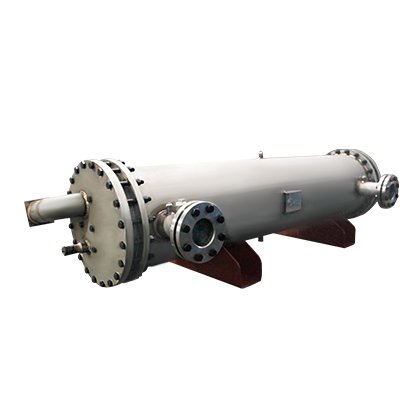

Multi-pass Tube Bundle Heat Exchanger
Tube Bundle Heat Exchangers by Material
Appropriate material selection can solve the problems of equipment corrosion resistance and heat exchange performance.

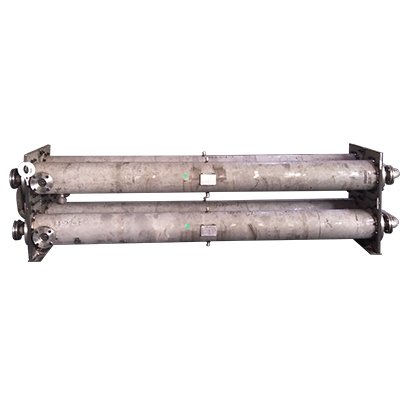

Stainless Steel 304/316L Tube Bundle Heat Exchanger

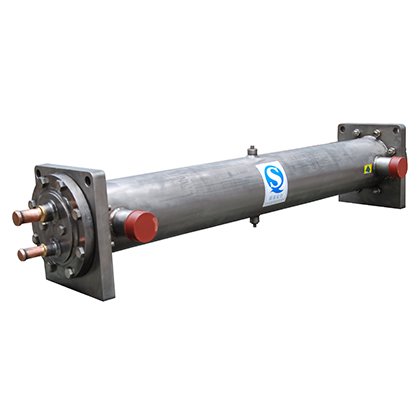

Titanium Tube Bundle Heat Exchanger

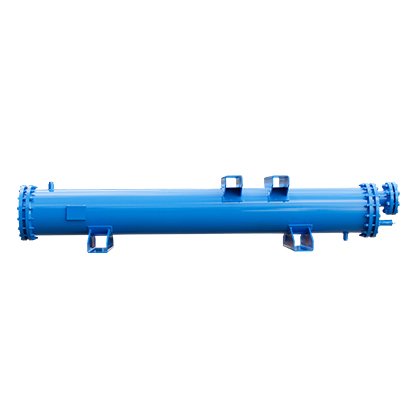

Copper Tube Bundle Heat Exchanger
Features of UAR Tube Bundle Heat Exchanger
Reliable Customized Tube Bundle Heat Exchanger Solutions
Optimized tube spacing and baffle layout improve heat exchange efficiency per unit volume.
Key contact components are made of high-grade alloys. It is adaptable to complex media such as acids, alkalis, seawater, and steam.
By combining expansion and welding processes, the risk of leakage is avoided.
Can be integrated into existing production lines and supports customization of non-standard interfaces.

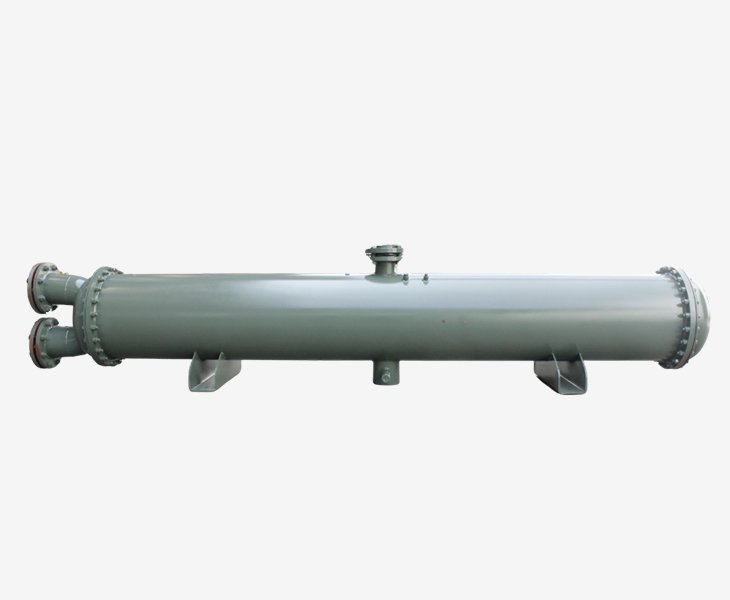

Low Energy Consumption
By using thermal simulation to model operating conditions, the UAR tube bundle heat exchanger allows for precise adjustment of pipe design and flow distribution. This reduces overall energy consumption and helps users save on operating costs.

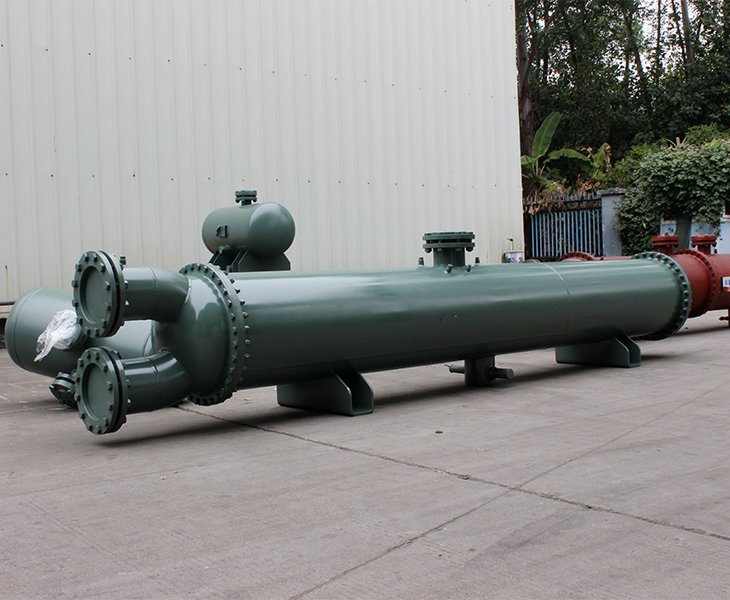

Customizable Tube Bundle Heat Exchanger Size
When retrofitting or reinforcing existing equipment, installation space is often limited. UAR can adjust the shell shape, pipe length, and orientation of the tube bundle heat exchanger based on on-site measurements. This ensures smooth installation while maintaining heat exchange efficiency.

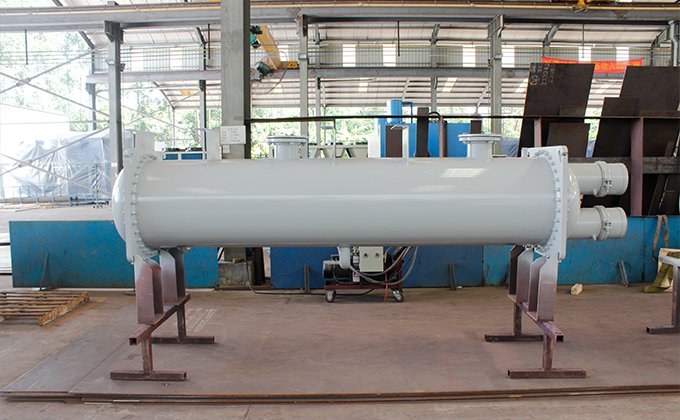

UAR tube bundle heat exchangers are widely used in the chemical, energy, and other industries. We also provide customized tube bundle heat exchanger solutions for marine environments to meet the needs of specific projects.

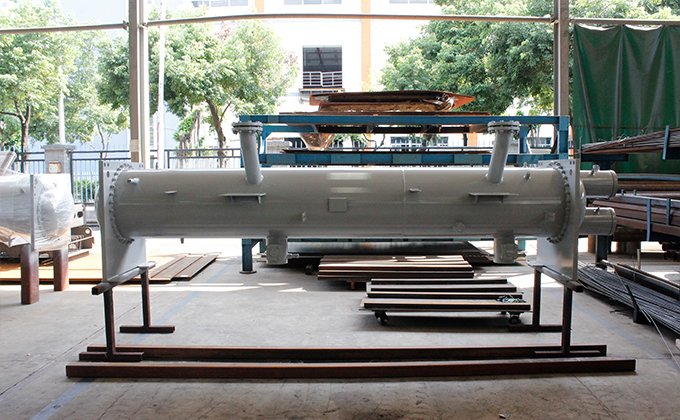

Standard models of tube bundle heat exchangers are kept in stock as semi-finished products to ensure timely shipment. Urgent projects are processed with accelerated timelines. The synchronized advancements in technology and production have significantly shortened lead times, guaranteeing on-time delivery.
Tube bundle heat exchangers are a common type of industrial heat exchange equipment. The tube bundle arrangement ensures sufficient contact between the fluids, resulting in high heat transfer efficiency.
In corrosive environments, it is recommended to choose materials with higher corrosion resistance. This solution maintains good operational stability even under conditions of high chloride ion concentration and operating temperatures approaching 90 °C, and has been proven in hydrometallurgy and seawater desalination projects.
The price of a tube bundle heat exchanger needs to be calculated based on your specific project requirements. Different structures, materials, and other factors will affect the price.
Yes, the detachable end cap structure does support the removal of the tube bundle for cleaning or replacement. However, this requirement needs to be clearly defined in the design phase to ensure sufficient space for extraction and installation, as well as supporting structures.
By default, we will provide PDF versions of the assembly drawings, nozzle orientation diagrams, and bill of materials. If CAD (DWG/DXF) or 3D models (STEP/IGES) are required, please specify this in the contract, and we will deliver them in phases according to the project schedule.
