Why Choose UAR Shell and Tube Evaporator
Shell and Tube Evaporator Manufacturer Since 1996
Heat Transfer Efficiency up to 95%Â
PED/CE, ASME, EAC, SELO, DNV CertifiedÂ
Other Major Marine Certified
OEM & ODM Shell and Tube Evaporator
Over 3,000 Shell and Tube Evaporators Delivered Globally
Your Professional Shell and Tube Evaporator Manufacturer
Shell and tube evaporators are suitable for air conditioning and industrial refrigeration systems. We have many years of research and extensive production experience in this field. Our professional team provides one-on-one calculations and selection of shell and tube heat exchangers. The internal design of shell-and-tube evaporators can adopt U-tube, straight tube, and other methods, which will be more targeted to meet your project’s requirements for heat exchange efficiency and ease of maintenance.
Full Range of Shell & Tube Evaporators
Looking for shell and tube evaporators? Why not consider UAR’s shell and tube evaporators? With over 30 years of design and manufacturing experience, we specialize in customizing evaporators to meet our customers’ exact requirements.
Suitable for large-scale chillers, industrial refrigeration, and central air conditioning systems.
Suitable for high-efficiency, energy-saving chillers and industrial refrigeration systems.
Suitable for application in small and medium-sized chillers, heat pumps, and air conditioning refrigeration systems.
Suitable for applications such as high-efficiency chillers, data centers, and industrial process cooling.

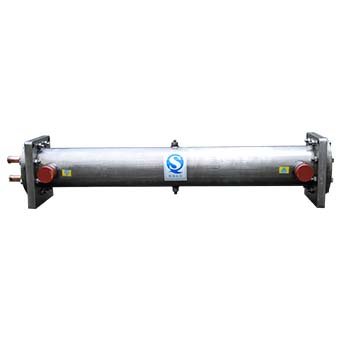

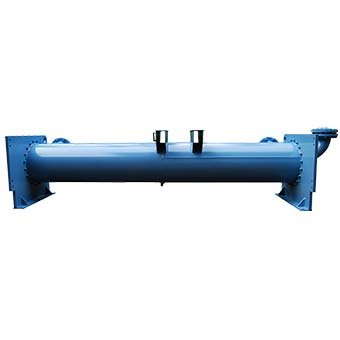

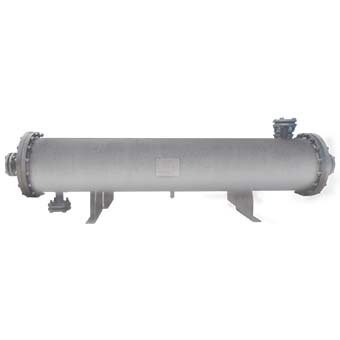

Shell and Tube Evaporators by Tube Materials
We can provide customized material solutions tailored to the specific media, operating conditions, and corrosion characteristics of the project.

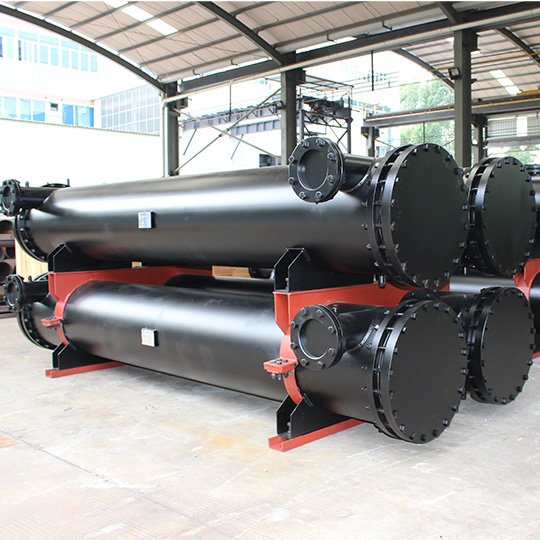

Corrosion-resistant and high-temperature resistant.
Good heat transfer efficiency and cost-effectiveness.

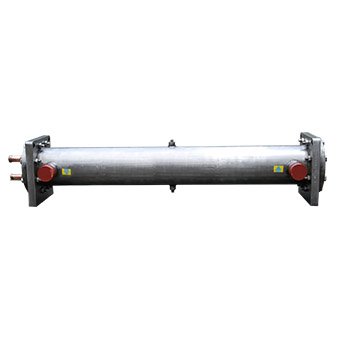

Exceptional resistance to seawater and chloride ion corrosion.

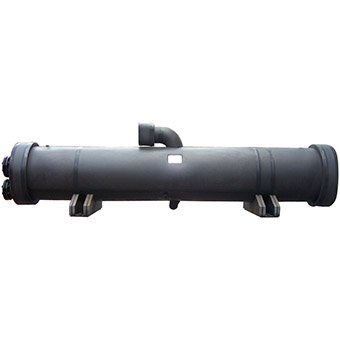

Good thermal conductivity and resistance to seawater corrosion.

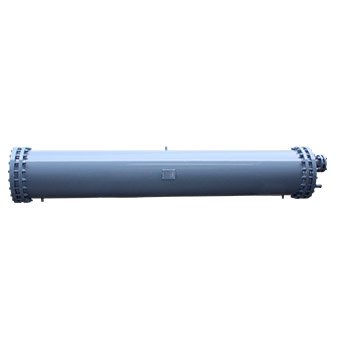

Shell and Tube Evaporators by Shell Materials
For special operating environments—such as those involving specific pressure ratings or external corrosion—we can also offer a variety of shell material options.

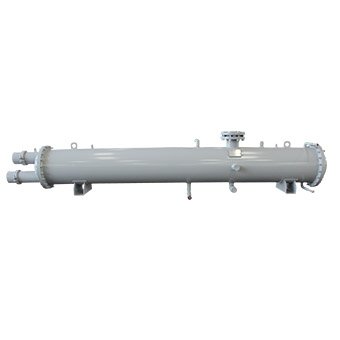

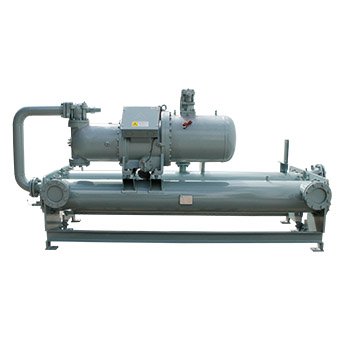

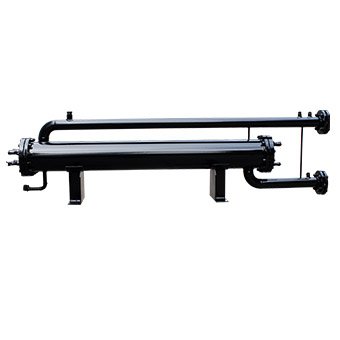

Shell and Tube Evaporators by Refrigerants
The UAR shell-and-tube evaporator supports a wide range of refrigerants, meeting the requirements of diverse refrigeration systems and environmental regulations.
Optimized heat exchange structure. With stable operation, wide range of applications.
Strong cooling capacity and high heat exchange efficiency.
Excellent energy efficiency and system compatibility.

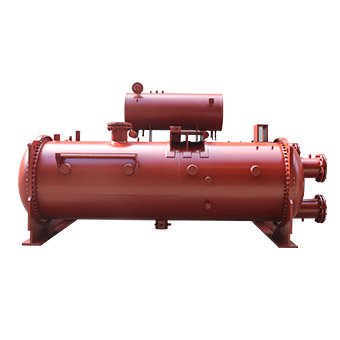

Shell and Tube Evaporators by Applications
UAR meets your requirements for efficient heat transfer, stable operation, and energy-saving applications.
Designed specifically for your industrial and process cooling needs.

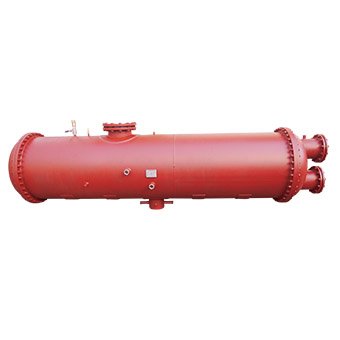

Highly efficient heat exchange and stable operation. Suitable for HVAC systems, enabling efficient heat exchange.

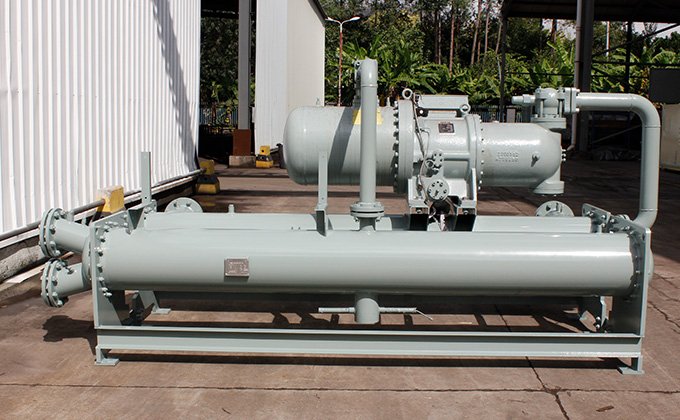

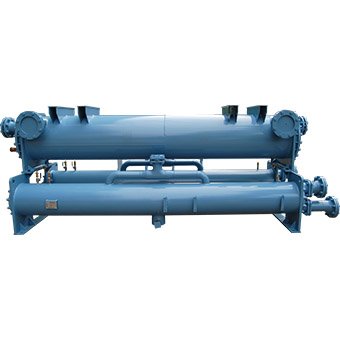

The core heat exchange component of a chiller unit. With excellent heat transfer performance and system compatibility.
Features of UAR Shell and Tube Evaporator
Your Trusted Shell-and-Tube Evaporator
The design team optimized the internal piping layout, effectively improving heat exchange efficiency.
UAR carefully selects certified raw materials to manufacture shell-and-tube evaporators, ensuring product quality.

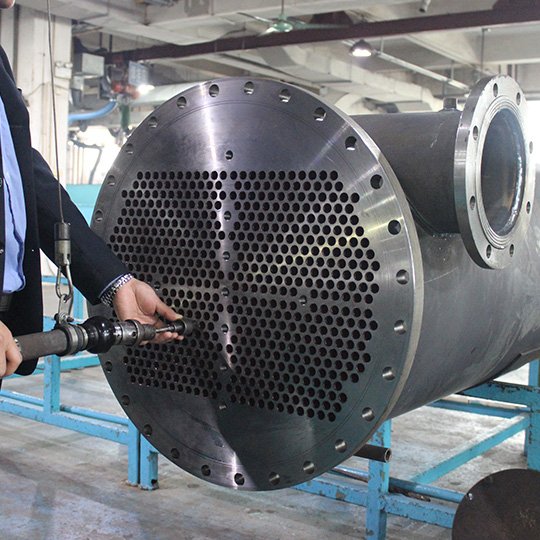

The removable end cap design of the shell allows for quick inspection and cleaning of the internal tube bundle of the shell and tube evaporator.
Our shell and tube evaporators achieve uniform heat exchange, and their low pressure drop design minimizes system fluctuations, resulting in a long service life.

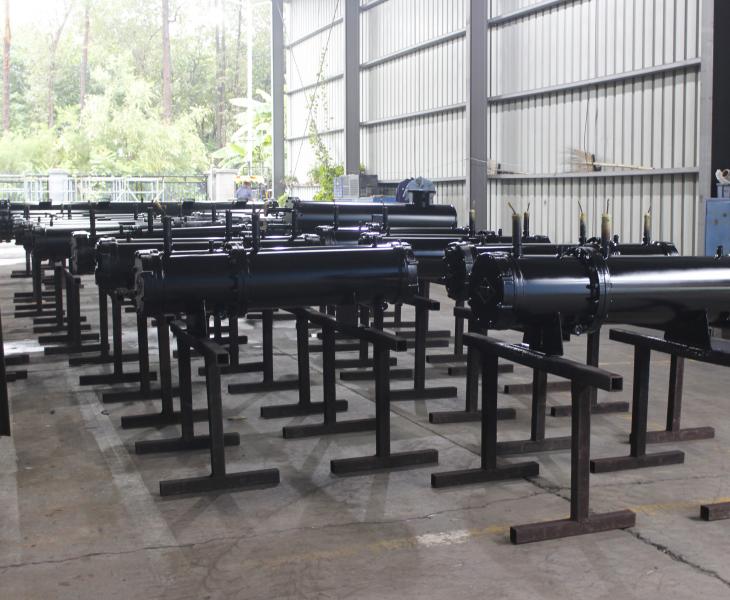

Customize the Shell and Tube Evaporator You Need
UAR shell and tube evaporators support customization in terms of capacity, number of tubes, tube material, color, size, refrigerant, and more. We can provide matching shell and tube evaporators according to your project requirements. Tell us your application and needs, and we will provide a quote for a shell-and-tube evaporator suitable for your system.
Shell and Tube Evaporators with Diverse Configuration Options
UAR offers a variety of shell and tube evaporator configurations, including Tube Evaporators, Flooded Evaporators, Spray Evaporators, and Dry Expansion Evaporators. We provide a wide range of options to meet the specific application and media of your project.
Resource

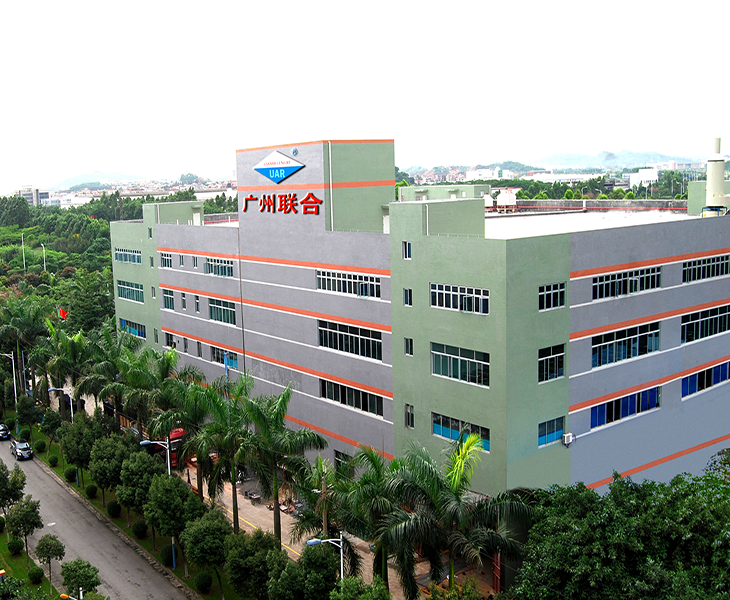

Company Advantage
UAR boasts over 30 years of experience in the research and development and manufacturing of shell and tube evaporators. We are equipped with advanced production and testing equipment and systems. Our professional R&D team provides product selection, structural optimization, and system integration solutions. We can offer you stable and reliable shell and tube evaporators.
UAR shell and tube evaporators support ASME, PED, GB, and other standards. If you require shell and tube evaporators with international certifications, please contact us.
Applications for Shell and Tube Evaporator
Shell-and-tube evaporators are among the most widely used devices in the HVAC industry. UAR has successful case studies across various applications and extensive experience in designing and manufacturing evaporators to meet the specific needs of various industries.
UAR shell and tube evaporators are applicable to the injection molding and plastics processing industries. Our evaporators can precisely control the cooling water temperature, effectively shortening production line molding cycles, reducing scrap rates, and improving overall production efficiency.
UAR shell and tube evaporators are widely used in food processing, beverage production, and cold chain refrigeration processes. We support custom evaporators made of food-grade materials. We provide efficient heat exchange while addressing your food industry’s requirements for hygiene, safety, and energy efficiency.
We understand the high demands of the pharmaceutical industry for temperature control and equipment stability. UAR shell and tube evaporators can help. Our evaporators provide precise and reliable temperature control throughout your production process, ensuring product quality and production continuity.
As we all know, data centers have very high requirements for heat dissipation. Shell and tube evaporators are used in chillers and liquid cooling systems to provide stable and reliable cooling for servers and critical equipment in data centers, ensuring stable operation of your data center year-round.
UAR shell and tube evaporators can quickly remove heat generated during production. Therefore, our equipment is suitable for cooling systems in various industrial production processes, including chemical, electronics, laser, rubber, and metal processing. We have many years of production experience in this industry and provide customized heat exchange solutions for different operating conditions.
Shell and tube evaporators are essential components of central air conditioning and HVAC systems. UAR shell and tube evaporators offer advantages such as high heat exchange efficiency, high energy efficiency, and stable operation. We can solve HVAC system problems for commercial buildings such as office buildings, hotels, hospitals, shopping malls, and schools.
UAR has a professional design team. They design shell and tube evaporators with efficient heat transfer and energy-saving controls. This improves the overall system performance coefficient (COP) and reduces the total cost of the project over time.

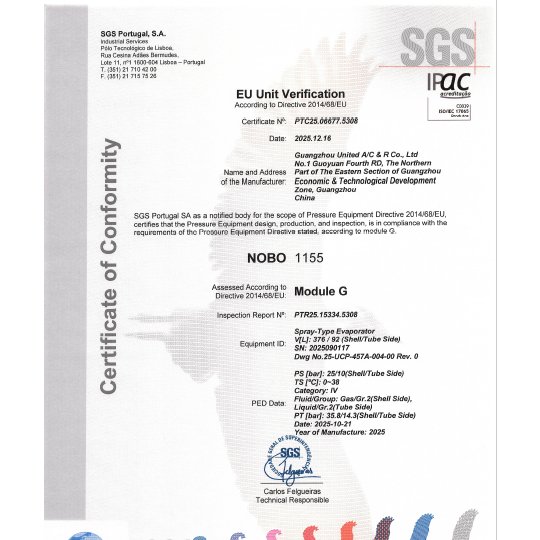

UAR shell and tube evaporators use materials that comply with certification systems and are manufactured using processes that meet certification standards. When you require shell and tube heat exchangers certified by PED, CE, ASME, or other standards, please contact us for a quote.
More About UAR Shell and Tube Evaporator
- Specifications
| Type | Flooded Evaporator, Spray Evaporator, Dry Expansion Evaporator,Falling Film Evaporator |
| Heat Exchanger Capacity | 10kW-10000kW |
| Design Pressure | 0-100MPa |
| Design Temperature | -100℃-500℃ |
| Tube Material | Stainless Steel, Copper, Titanium, Nickel-copper, Aluminum Brass, Carbon Steel |
| Shell Material | Stainless Steel, Carbon Steel, Titanium |
| Refrigerant | R134a, R410a, R407c, R1234ze, R1234yf, R245fa |
| Size | Custom |
| Color | Custom |
Testimonials
The UAR shell and tube evaporator is well-made, its heat exchange efficiency meets our project requirements, and the equipment operates stably. The entire procurement and delivery process was very smooth, making them a trustworthy partner.
John M. – HVAC Contractor, AustraliaWe needed shell and tube evaporators of special dimensions and operating pressure. The factory quickly completed the custom production and delivered them on time, with satisfactory product quality.
Carlos R. – Industrial Equipment Distributor, MexicoThe equipment has been running continuously for more than three years with stable performance, consistently good cooling effect, low maintenance cost, and overall user experience exceeding expectations.
David P. – Process Cooling Integrator, Thailand
The shell and tube evaporator is suitable for air conditioning and industrial refrigeration systems, optimizing system performance and efficiency for your project.
UAR’s shell and tube evaporators are primarily custom-designed to suit different systems and application environments.
Please provide us with detailed information regarding the application scenario, cooling capacity, refrigerant type, and inlet/outlet water temperatures for the shell and tube evaporator. We will then select the appropriate model or provide a customized solution to achieve optimal performance.
Of course, we use all-natural refrigerants. We can provide you with environmentally friendly refrigerants when you require them.
For applications in a corrosive environment, we can offer a corrosion-resistant shell and tube evaporator design. This ensures your shell and tube evaporator operates more reliably and efficiently while extending its service life.
Flooded evaporators offer high heat exchange efficiency and low energy consumption, making them more suitable for applications with high energy efficiency requirements. Dry evaporator systems, on the other hand, have a simpler structure and are better suited for small to medium-sized chillers, heat pumps, and commercial air conditioning systems.
- Select appropriate evaporation temperature and flow rate.
- Use high-efficiency heat exchange tubes.
- Keep heat exchange tube surfaces clean.
- Reduce scale and dirt buildup, and select suitable refrigerant and evaporator structure.
- Perform regular maintenance.
What Is The Shell And Tube Evaporator
Shell and tube evaporators are one of the core components of a refrigeration system. They achieve heat absorption and temperature reduction through heat exchange between the refrigerant and water or other cooling media.
Based on their structural form, shell-and-tube evaporators can be classified into flooded, dry, spray, and falling film types, among others.
What is The Working Principle of a Shell and Tube Evaporator

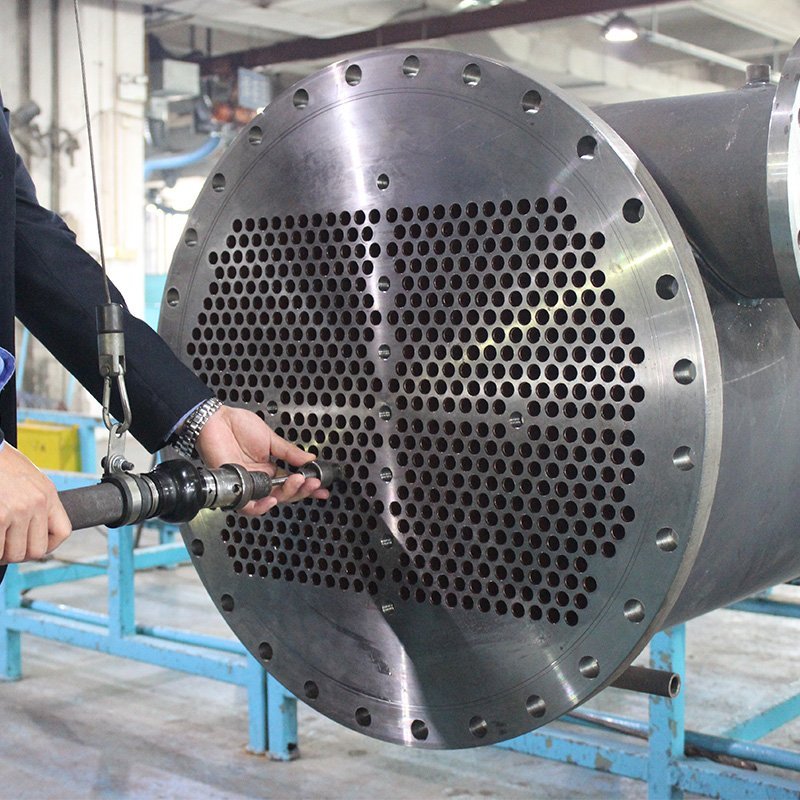

A shell and tube evaporator mainly consists of a shell, heat exchange tubes, tube sheet, water tank, and related connecting components.
The shell and tube evaporator utilizes the heat absorbed by the refrigerant as it evaporates inside the shell, exchanging heat with the water or other media flowing inside the tubes. This lowers the temperature of the medium, achieving efficient refrigeration and process cooling.
Main types of shell and tube evaporators

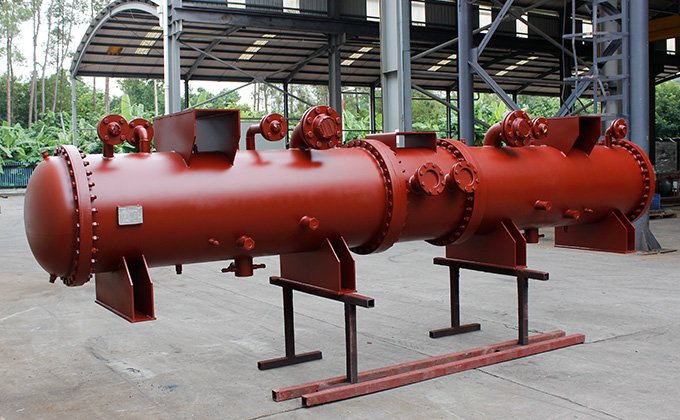

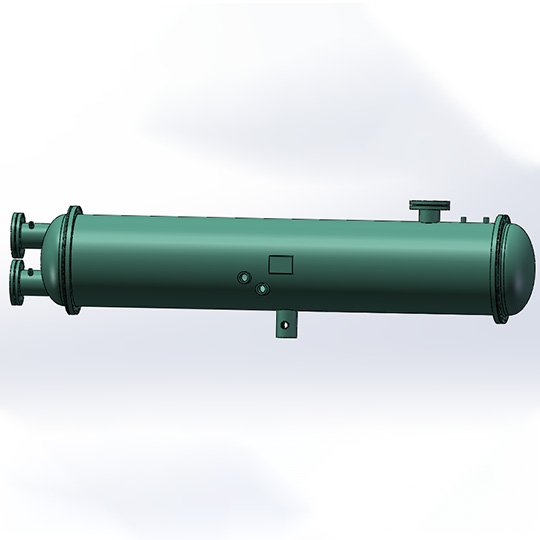

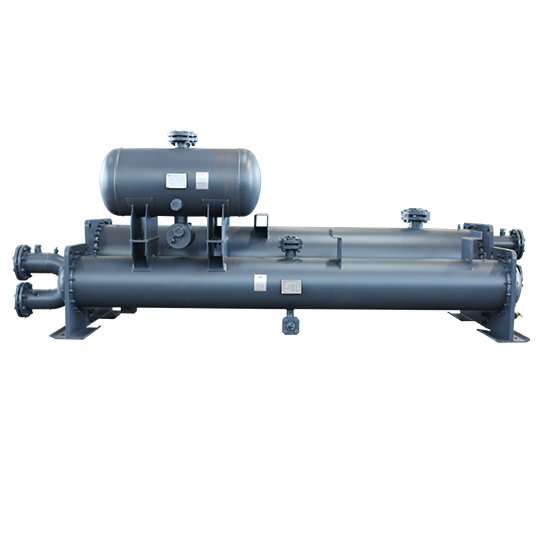

1.Flooded Evaporator
In a flooded evaporator, the refrigerant fills the space outside the heat exchange tubes during operation. Highly efficient heat exchange is achieved through full contact with the heat exchange tube surface. Its advantages include high heat exchange efficiency, strong cooling capacity, and excellent energy-saving performance, making it ideal for large-scale chiller units.

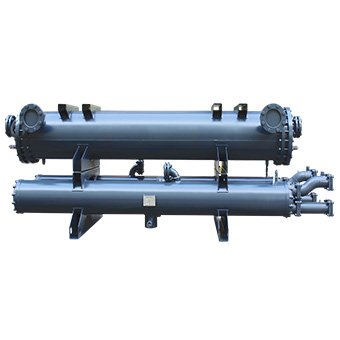

2.Dry Expansion Evaporator

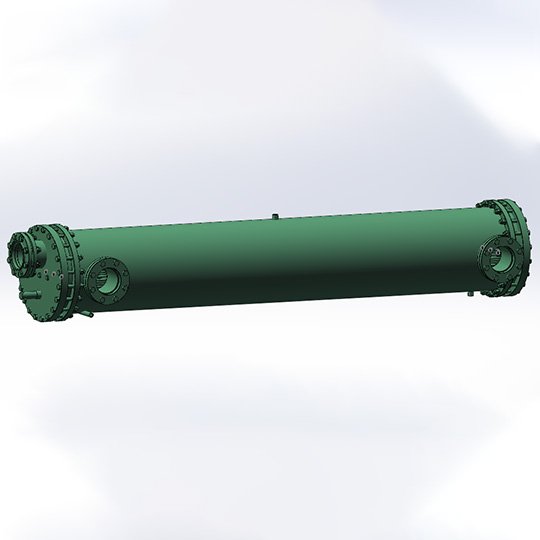

Dry-type evaporators use a direct expansion method. The refrigerant gradually evaporates during the heat exchange process. Its advantages include lower refrigerant charge, simpler system control, and easier maintenance. It is suitable for small and medium-sized chillers, heat pumps, and commercial air conditioning systems.

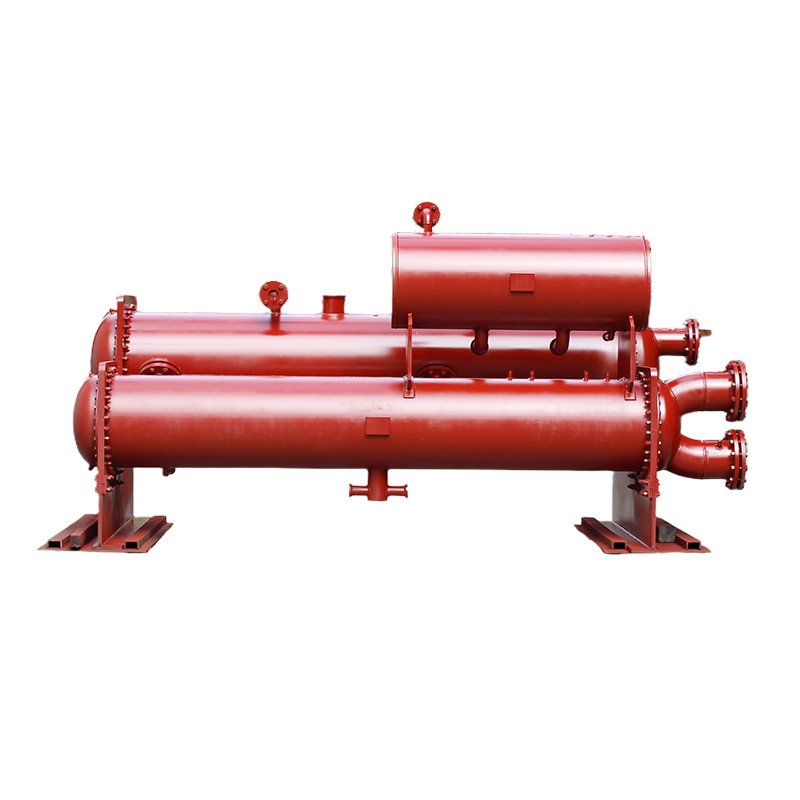

3.Spray Type Evaporator

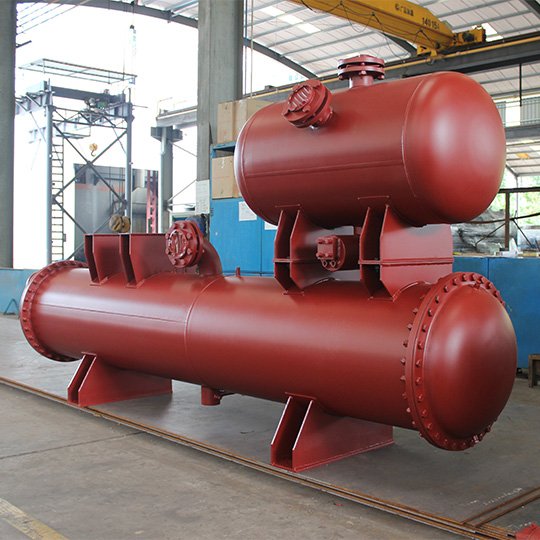

Spray-type evaporators use a spray system to evenly distribute the refrigerant, improving the utilization rate of the heat exchange tube surface. Their advantages include high heat exchange efficiency and low refrigerant consumption, making them highly suitable for energy-efficient systems.

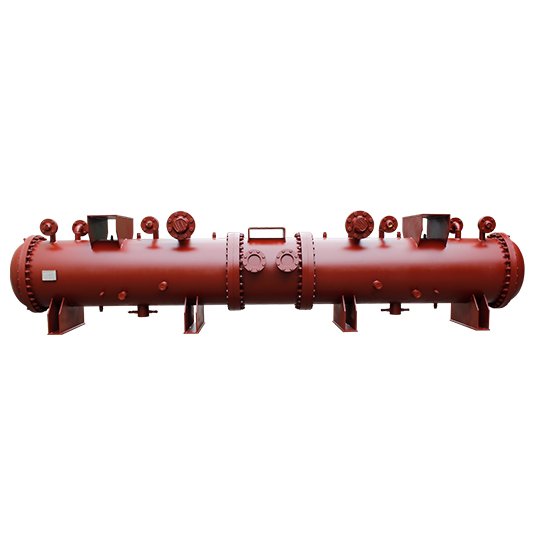

4.Falling Film EvaporatorÂ
Falling film evaporators utilize the thin film of liquid refrigerant formed on the surface of heat exchange tubes for evaporative heat exchange. Their advantages include low refrigerant charge, high energy efficiency ratio, and low operating costs. They are ideally suited for large-scale, high-efficiency chiller units and industrial refrigeration applications.
